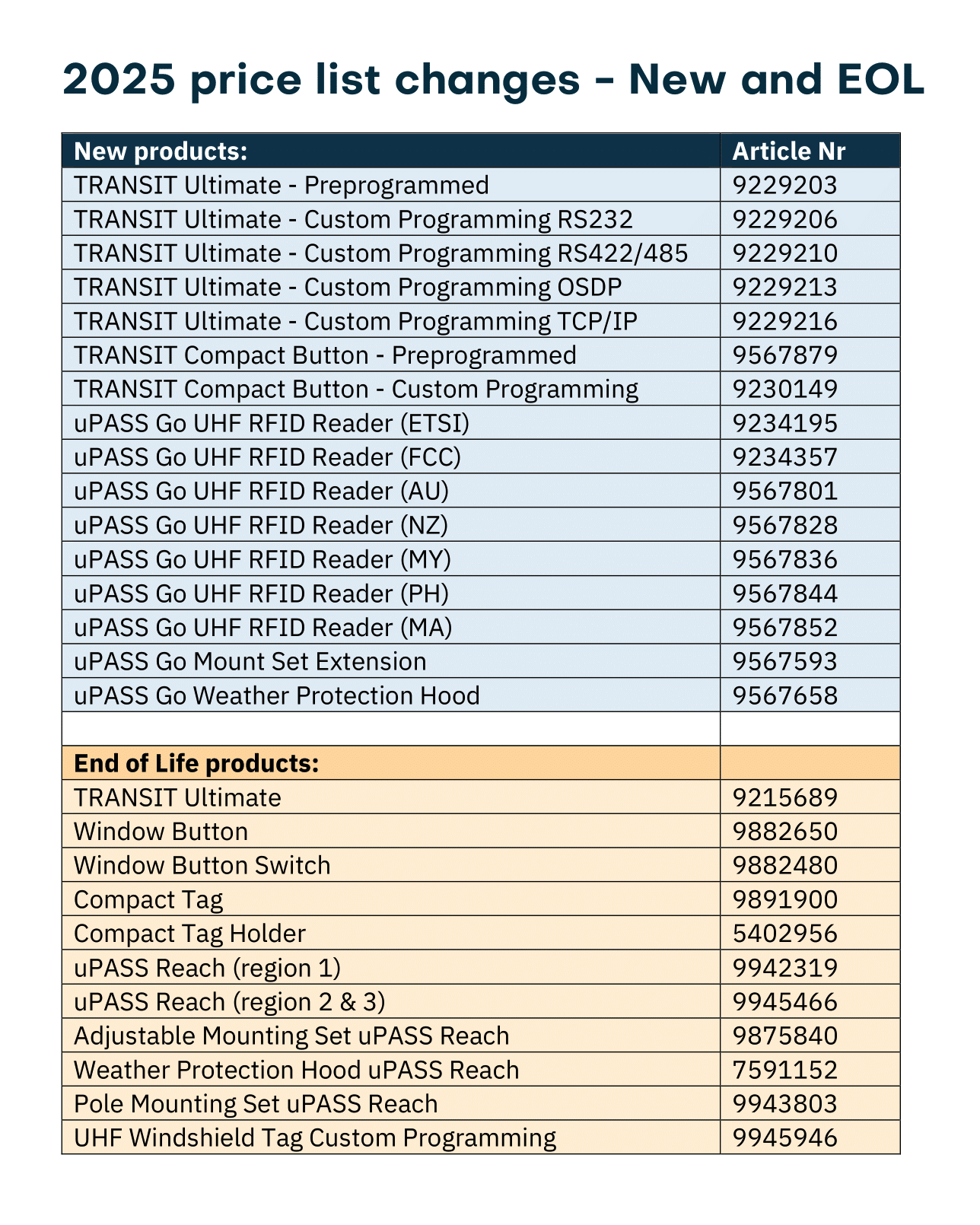

We have made some changes in our product portfolio:
-
- There are a number of products end of life
- We have introduced some new tags
- Pre-programmed TRANSIT & new part numbers per interface
1. End of Life:
The following TRANSIT products are end of life:
-
- TRANSIT Compact Tag (9891900)
- TRANSIT Compact Tag Holder (5402956)
- TRANSIT Window Button (9882650)
- TRANSIT Window Button Switch (9882480)
- The old part number of the TRANSIT Ultimate (9215689) is also EOL. The product itself is not, see item 3 for explanation.
-
- TRANSIT ATEX Reader (9840990) is removed from the pricelist but still available upon request.
Other End Of Life products are:
-
- uPASS Reach (region 1) - (9942319)
- uPASS Reach (region 2 & 3) - (9945466)
- uPASS Adjustable Mounting Set uPASS Reach (9875840)
- uPASS Weather Protection Hood uPASS Reach (7591152)
- uPASS Pole Mounting Set uPASS Reach (9943803)
- uPASS UHF Windshield Tag Custom Programming (9945946)
2. New tags/identifiers:
The following items are identifiers for TRANSIT that were recently launched:
-
- TRANSIT Compact Button - Preprogrammed (9567879).
- This is standard programmed with next available id numbering and with programming (customer code): GF227
- TRANSIT Compact Button - Custom Programming (9230149)
- This can be ordered with custom id numbering and custom programming (customer code)
- TRANSIT Compact Button - Preprogrammed (9567879).
In addition to new tags for TRANSIT, a new uPASS Go reader with related accessories has also been launched. There is an individual item number for each region:
-
- uPASS Go UHF RFID Reader (ETSI) - (9234195)
- uPASS Go UHF RFID Reader (FCC) - (9234357)
- uPASS Go UHF RFID Reader (AU) - (9567801)
- uPASS Go UHF RFID Reader (NZ) - (9567828)
- uPASS Go UHF RFID Reader (MY) - (9567836)
- uPASS Go UHF RFID Reader (PH) - (9567844)
- uPASS Go UHF RFID Reader (MA) - (9567852)
- uPASS Go Mount Set Extension - (9567593)
- uPASS Go Weather Protection Hood - (9567658)
3. Pre-programmed TRANSIT & New Item numbers by interface for TRANSIT Ultimate
Previously, when ordering a TRANSIT Ultimate, customers had to specify which interface, firmware, and programming they needed (customer code). We found that most customers use a standard interface, and custom programming is not always needed. This led to confusion and made the order process more difficult for customers. To solve this, we did two things:
-
We introduced a pre-programmed version of the TRANSIT Ultimate Long-range RFID Reader with a standard interface, firmware, and programming.
- This version works well for new installations, and you can also use it in existing systems by adding the programming from the current installation using the TRANSIT configuration tool. Both programming types are then read by the TRANSIT Ultimate Reader. The following article is available from 2025:
-
TRANSIT Ultimate Long-range RFID Reader - Preprogrammed (9229203)
- Interface: RS232/HID
- Programming: GF227
- Firmware: P81
- When ordering matching tags, such as TRANSIT Compact Button – Preprogrammed (9567879), you will receive the next available numbering.
- Preprogrammed tags have much shorter delivery times than custom programmed tags and readers.
-
The individual TRANSIT interfaces are now linked by default to the TRANSIT Ultimate and each interface has its own article number. However, programming must still be specified at the time of purchase for these versions. The following articles have been introduced:
- TRANSIT Ultimate Long-range RFID Reader - Custom Programming RS232/HID - (9229206)
- TRANSIT Ultimate Long-range RFID Reader - Custom Programming RS422/485 - (9229210)
- TRANSIT Ultimate Long-range RFID Reader - Custom Programming OSDP - (9229213)
- TRANSIT Ultimate Long-range RFID Reader - Custom Programming TCP/IP - (9229216)
Note: Wiegand is standard included on all TRANSIT readers. See the datasheet for more details on interfaces.
Customer code/programming always starts with two letters (GF, CF, or DF) followed by three digits (000). The pre-programmed option uses GF227.
Adding pre-programmed to existing installations using the TRANSIT Configuration Tool
It is possible to add pre-programmed readers and tags to existing installations that have different programming. The existing and new reader must then be configured to read multiple programming. This can be done using the TRANSIT Configuration tool. This must be done on site at the TRANSIT.
Extensions at existing plants
- Extensions with Pre-programmed: Would you like to take advantage of all the benefits offered by pre-programmed items when expanding existing installations? Use the TRANSIT configuration tool to make the readers compatible with both existing and new (pre-programmed) programming (customer code).
-
Extensions with custom programming: Please note, if you want to extend an existing installation with preprogrammed items this requires additional configuration of the readers.
- Does the end user want to extend the installation in the existing configuration? Then request the configuration (programming) and choose the 'custom programming' items. When ordering, we need to know what programming (customer code) to include.
