This article discribes where you can find the article/product and serial number, of your product.
| ANPR | uPASS | TRANSIT | NVITE |
| ANPR Lumo | uPASS ACCESS | TRANSIT ULTIMATE | NVITE |
| ANPR ACCESS V2 Long | uPASS REACH | TRANSIT ENTRY | |
| ANPR ACCESS V2 Short | uPASS TARGET | ||
ANPR CAMERAS
ANPR LUMO (9986138)
At the bottom of the product, where the cables entering the camera, there is a label with product details, here you will find the required information. Below an example on how the label looks like.
ANPR ACCESS V2 Long (9986898)
At the bottom of the product, where the cables entering the camera, there is a label with product details, here you will find the required information. Below an example on how the label looks like.
ANPR ACCESS V2 Short (9986057)
At the bottom of the product, where the cables entering the camera, there is a label with product details, here you will find the required information. Below an example on how the label looks like.
uPASS

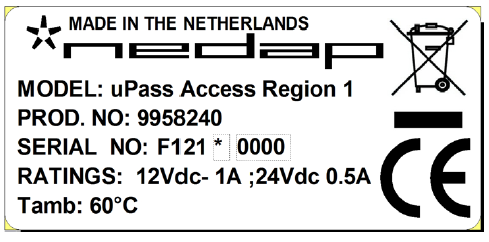

uPASS ACCESS (9958240, 9206663, 9211926)
At the rear side of the product, there is a label with product details, here you will find the required information. To see the label you will need to unmount the reader from the mounting bracket. Below an example on how the label looks like.

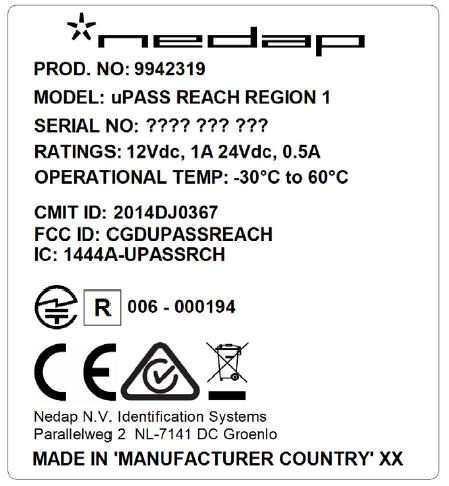

uPASS REACH (9942319, 9945466)
At the rear side of the product, there is a label with product details, here you will find the required information. To see the label you will need to unmount the reader from the mounting bracket. Below an example on how the label looks like.

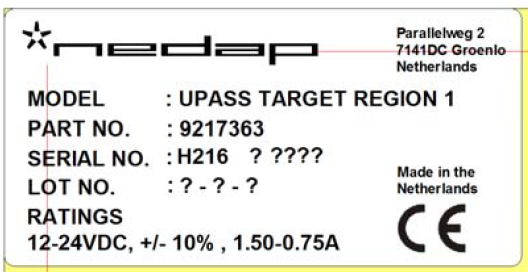

uPASS TARGET (9217363, 9217371)
At the rear side of the product, there is a label with product details, here you will find the required information. Below an example on how the label looks like.
TRANSIT

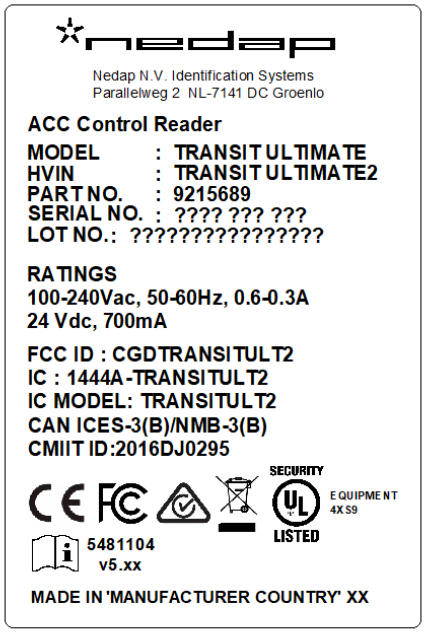

TRANSIT ULTIMATE (9215689)
At the left side of the product, there is a label with product details, here you will find the required information. Below an example on how the label looks like.
TRANSIT ENTRY (9876200)
At the rear side of the product, there is a label with product details, here you will find the required information.
NVITE

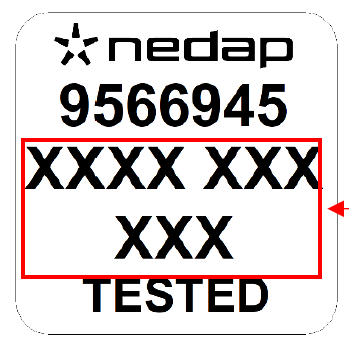

NVITE (9566945)
At the rear side of the product, there is are 2 labels with product details, here you will find the required information. To see the label you will need to unmount the reader from the mounting bracket. Below an example on how the label looks like.
SENSIT
SENSIT IR Flush Mount (9221166)
Products details are engraved with Laser on the product, below an overview of this engravement. Article, ID and production code (UO11) are important data.
SENSIT IR Surface Mount (9958525)
Products details are engraved with Laser on the product, below an overview of this engravement. Article, ID and production code (UO11) are important data
SENSIT Relaynode 2G (9212884, 9212892, 9212906)
Products details are engraved with Laser on the product on the bottom side of the product.

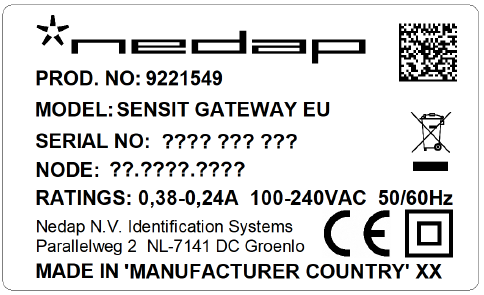

SENSIT Gateway (9221549, 9221786, 9221778)
At the rear side of the product, there is a label with product details, here you will find the required information.
MOOV
VMC
The product label can be found on the side of the product, below an example of this product label

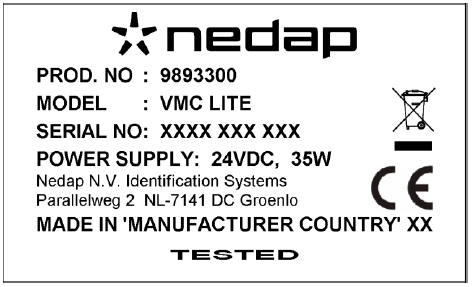

VMC Lite
The product label can be found on the side of the product, below an example of this product label
